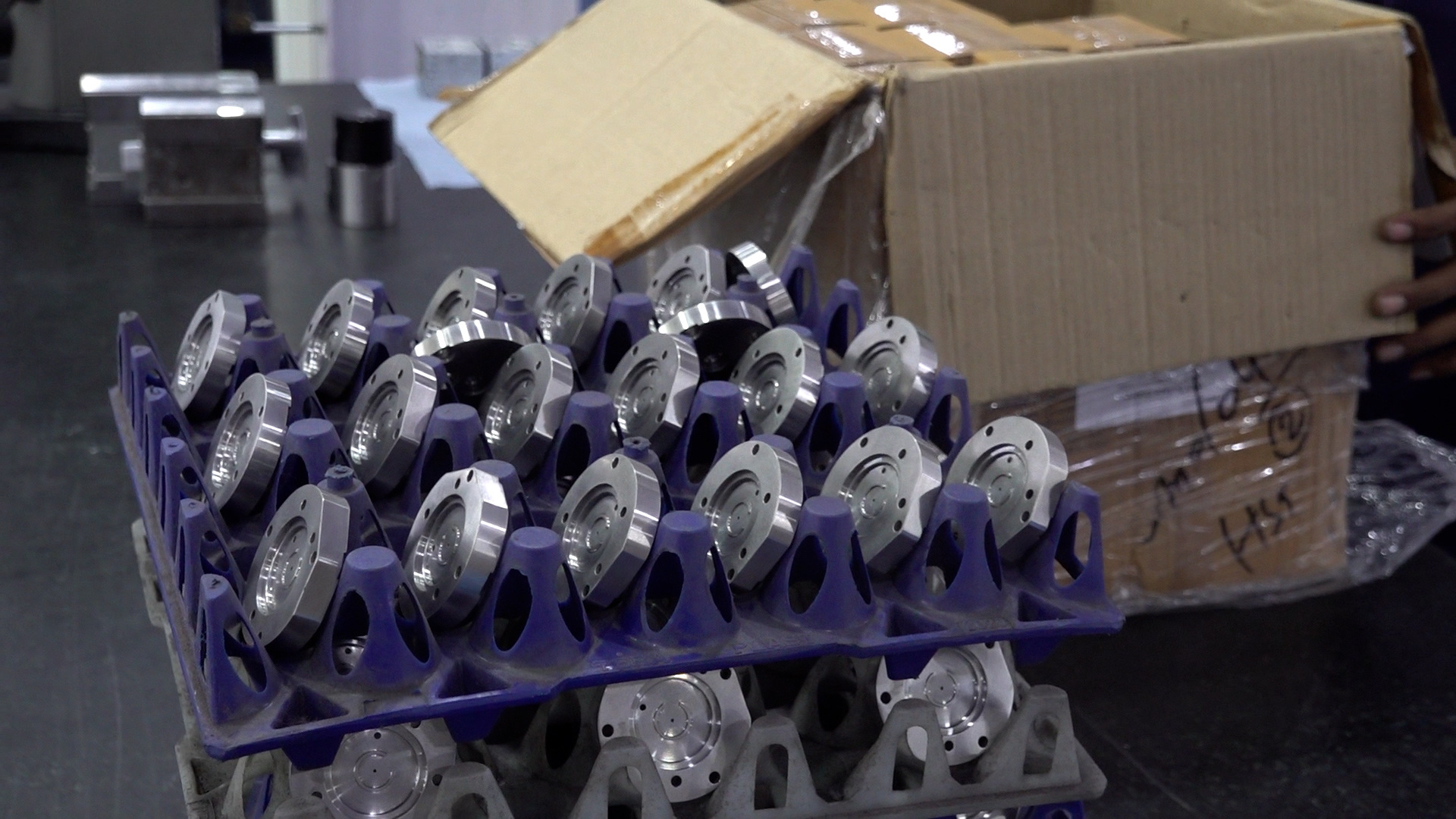

Aaran 1 manufacturing team have been manufacturing CNC machined components for over 30 years supplying pipe end fittings, AS parts and a wide range of machined aircraft / automotive components to major OEM’s and 1st tiers. This extensive aerospace engineering experience, Provides a low cost, low risk solution for our customers’ global sourcing strategy.

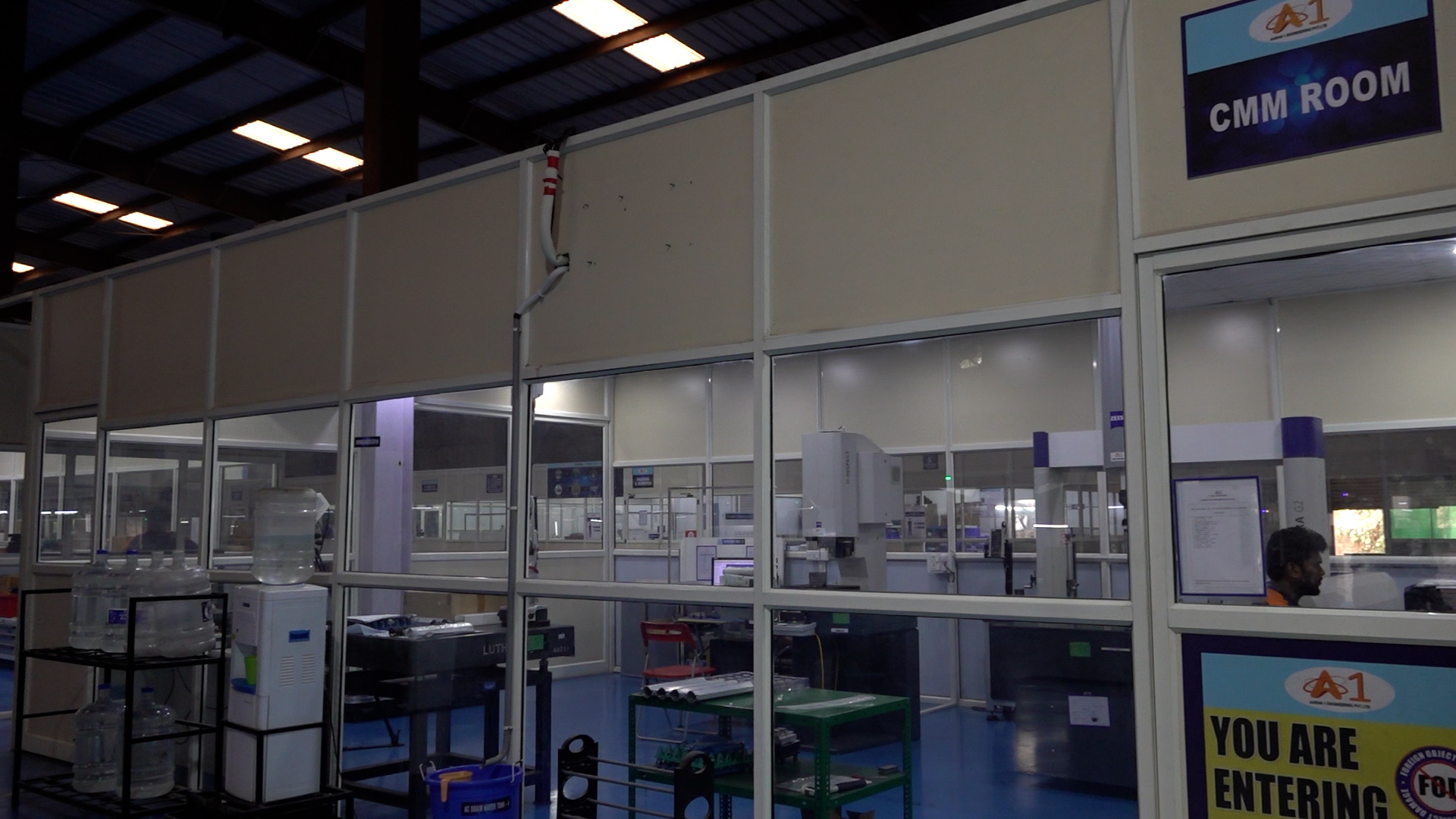

Continuous investment in modern CAD/CAM and CNC machine tool technology within our temperate control facility ensures that we, can maintain the highest possible standards of quality and competitive costs.

CNC TURNING

  • CNC lathes Chuck with bar feed
  • Live tooling
  • Tolerances to 0.0004" (.012mm)
  • Max chuck diameter 10" (250mm)

Lakshmi Machine Works Limited, founded in 1962, is today one of the three in the world, who manufacture the complete range of textile spinning machinery. During 1988, LMW added to their formidable manufacturing resources, a new plant to produce CNC Machine Tools in technical collaboration with M/s. Mori Seiki Co.Ltd., of Japan. A plant that is one of its kind in India. Aaran 1 has invested in 3 machines from them including newly introduced Smart Turn Plus,

Qty MACHINE MAKE Type MODEL Nos DIA Length Centre Bar feed RPM Controls Spindle
1 LMW 6'' Chuck CNC Lathe SMART TURN + 1 200mm 262mm 345mm 53mm 30000 FANUC 1
2 LMW 8'' Chuck CNC Lathe LL20T L3 2 320mm 370mm 450mm 56 & 64mm 4500 FANUC 1
3 LMW 10'' Chuck CNC Lathe LL25T L5 2 420mm 470mm 550mm 64mm 4500 FANUC 1
4 DMG 8’ TURN MILL + Y axis NLX2000 Y 1 320mm 1

Advanced Machining Cell Coming 2018

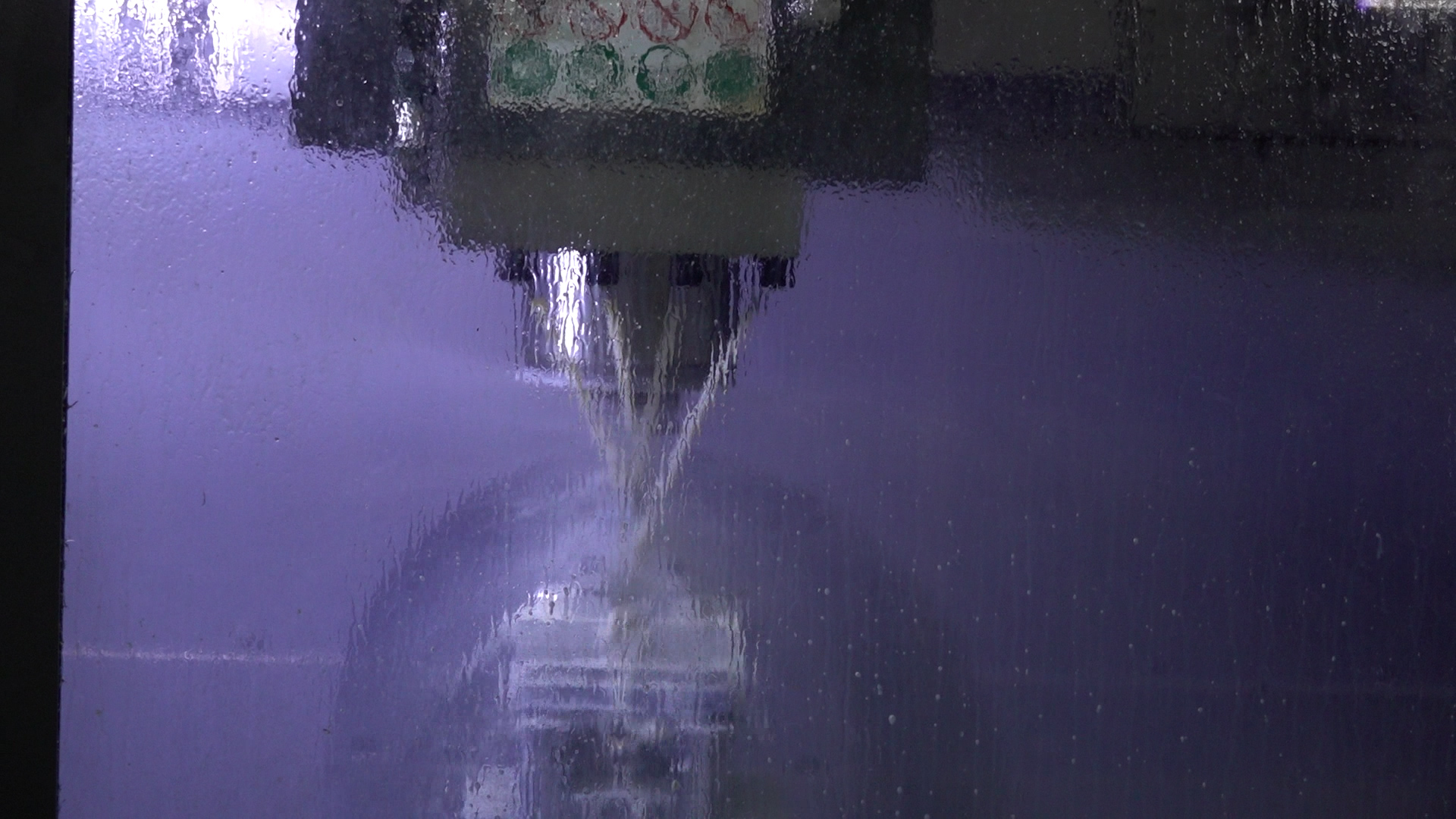

CNC MILLING

  • VMC with 4 axis
  • Tolerances to 0.001
  • Max size 800 x 600 x 600 mm

Haas vertical machining centre’s are the industry standard for OEMs and job shops around the world. Haas VMCs and routers boast an industry-leading control, accessible pricing, and top-tier performance

The VF1

Vertical Machining Center; 20" x 16" x 20" (508 x 406 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 20-station carousel tool changer, 1000 ipm (25.4 m/min) rapids, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

The VF2 Plus 4 Axis

Vertical Machining Center; 30" x 16" x 20" (762 x 406 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 10000 rpm, inline direct-drive, 20-station carousel tool changer, 1000 ipm (25.4 m/min) rapids, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

Cosmos

Vertical Machining Centre; 850 x 510 x 510 mm), 40 taper, 30 hp (22.4 kW) , 8000 rpm, inline direct-drive, 24-station carousel tool changer, 36 m/min rapids, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock key switch, rigid tapping

Qty MACHINE MAKE Type MODEL Nos DIA Length Centre Table dia RPM Controls Spindle
1 HAAS VMC Milling VF2 + 4th axis 8 762mm 406mm 508mm - 10000 HAAS 1
2 HAAS VMC Milling VF1 2 508mm 406mm 508mm - 8100 HAAS 1
3 COSMOS VMC Milling CVM-800 + 4th axis 1 800mm 500mm 500mm - 8100 Mitsubishi 1
4 HAAS VMC Milling VF4 1 1200mm 406mm 508mm - 10000 HAAS 1

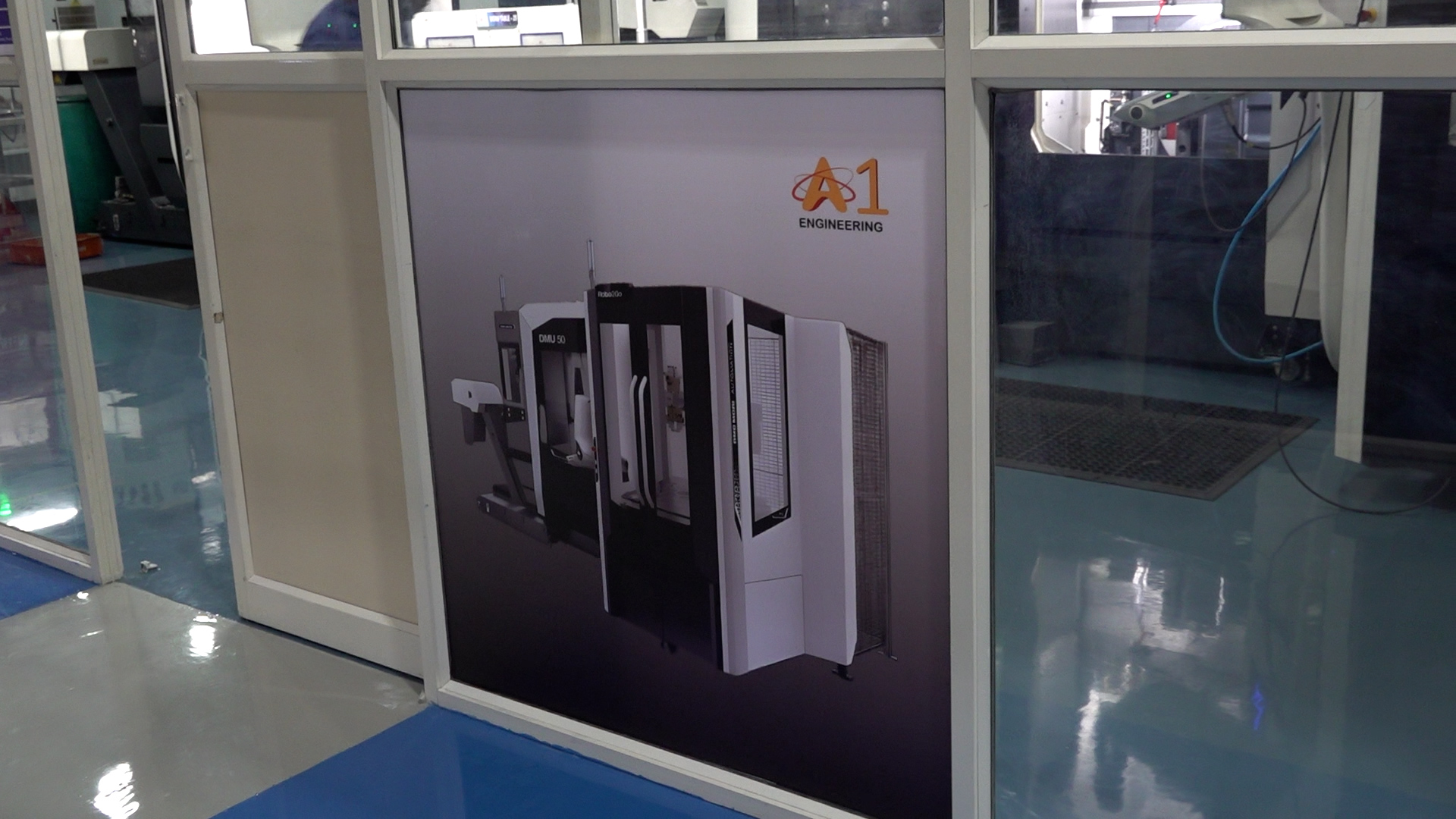

5 DMG 5 AXIS AXIS CMX 50 1 500mm 450mm 400mm 600mm 15000 DMG 1
6 HAAS 5th Axis VF2 with 5th axis 1 762mm 406mm 508mm 450mm 10000 HAAS 1

Advanced Machining Cell Coming 2018

Grinding

  • SPM Automatic double column saw
  • Godrej Forklift truck 3 TON capacity
  • Cummins 125KV GENSET
Qty MACHINE MAKE Type MODEL Nos Min DIA Max DIA Max grinding length Auto thru feed RPM Controls Spindle
1 SMT Centre Less Grinding No 2.8" 1 1.5mm 120mm 500mm Yes 30000 DRDO 1

Advanced Machining Cell Coming 2018

Others

  • Automatic Bandsaw on order August 17
  • Godrej Forklift truck on order August 17

Advanced Machining Cell Coming 2018
